What is Vial?

Vial is a keyboard firmware and a companion configurator GUI. Its main value proposition is dynamic, on-the-fly keymap changes through the configurator, as well as editing macros, combos, and other features.

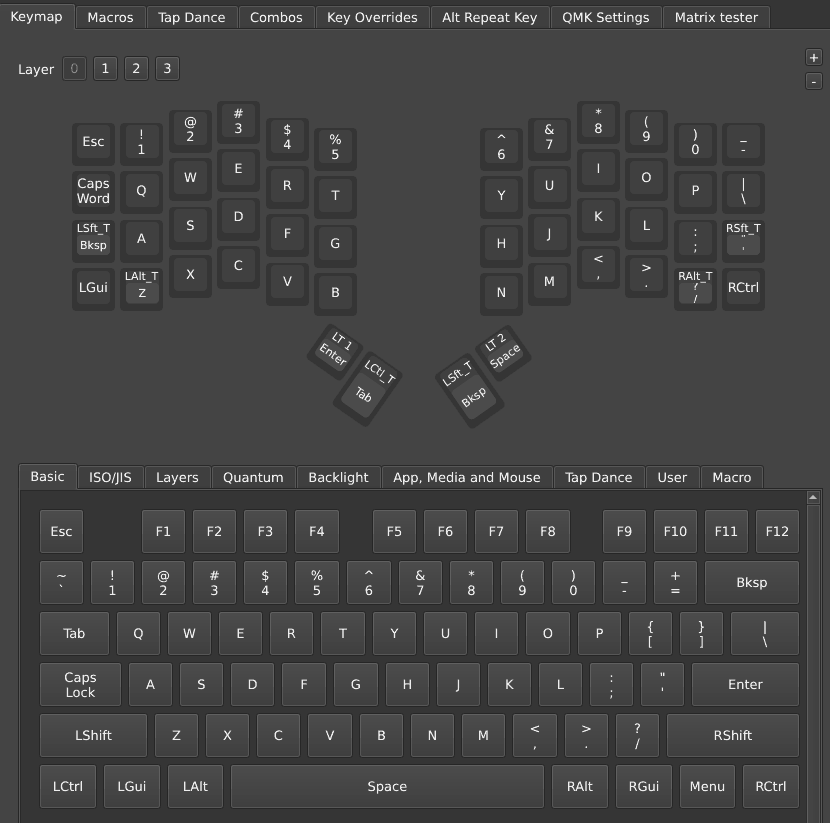

Vial configurator main keymap view, connected with a ZSA Voyager.

How does Vial relate to QMK?

Vial is a fork of the widely used QMK firmware, short for Quantum Mechanical Keyboard firmware. However, unlike mainline QMK, where updating your keymap requires editing a keymap.c source file + recompiling + reflashing to the keyboard, Vial allows you to modify your keymap instantly.

Feature limitations: Vial provides QMK’s layers, combos, tap-hold keys, one-shot keys, Tap Dance, Key Overrides, and then some—see the Vial user manual. But not all QMK features are exposed. As of this writing in April 2026, Vial notably lacks per-key tap-hold settings, Autocorrect, Key Lock, Leader Key, OS Detection, Swap Hands, and Unicode input. If needed, you can customize your Vial build to enable missing features.

How does Vial relate to VIA?

VIA firmware another QMK-based firmware supporting dynamic keymap editing. While the two are functionally similar, Vial is an improvement over VIA in the following ways:

Install Vial on your keyboard

To use Vial, your keyboard needs to be running Vial firmware. Vial is compatible with the vast majority of QMK-supported keyboards. Note that Vial is not just an “add on” to QMK, it replaces it with its own dynamically-enhanced flavor of the firmware.

Set up your build environment

Vial firmware reuses QMK’s build system, so the steps here are basically to install QMK, then switch over to using Vial’s sources.

Instructions:

  1. Optional but encouraged: If you are unfamiliar shell commands like cd and ls, it is suggested to read this primer.

  2. Install QMK by following Setting Up Your QMK Environment. Windows users will install the QMK MSYS shell environment, which is also used for running the shell commands in the following steps.

  3. Get Vial’s code with the following shell command, cloning vial-kb/vial-qmk:

    git clone git@github.com:vial-kb/vial-qmk.git

    The above creates a new folder vial-qmk. Note: do not nest the vial-qmk folder inside any existing QMK repo folder (or you will have a confusing time).

  4. Enter the vial-qmk folder:

    cd vial-qmk

  5. Get git submodules with this command:

    make git-submodule

  6. Verify the environment is successfully set up with:

    qmk doctor

See also the “Prepare Your Build Environment” instructions in the Vial documentation.

Next, find your keyboard’s “vial” keymap: Within the keyboards folder, find your (exact!) keyboard model. This folder mirrors upstream QMK, and QMK’s keyboard browser is handy to search for a specific model. If you cannot find it, ask your keyboard vendor.

  • folder_openvial-qmk
    • folder_openkeyboards
      •  (more keyboards…)
      • folder_openzsa
        • foldermoonlander
        • folderplanck_ez
        • folder_openvoyager
          • folder_openkeymaps
            • folderdefault
            • folder_checkvial
      •  (more keyboards…)
Location of the “vial” keymap folder for the ZSA Voyager.

Within your keyboard’s folder, look for keymaps/vial. If this folder exists, Vial is already supported. If not, refer to Vial’s porting guide on how to port a QMK keyboard to Vial.

Build and flash the firmware

Build Vial: To build Vial firmware for the keyboard under keyboards/<kb>, run the shell command from the root vial-qmk directory:

make <kb>:vial

Replace the “<kb>” bit with the path for your keyboard, but omitting “keyboards/” and without a leading slash “/.” For example, the command “make zsa/voyager:vial” builds Vial for keyboard keyboards/zsa/voyager.

Flash Vial: The final step is flashing the firmware to the keyboard.

⚠  Warning

Do not unplug the keyboard or otherwise interrupt the flashing process while the firmware is being written.

With the keyboard connected to the computer, put the keyboard into DFU (device firmware update) mode, for instance by pressing the “Reset” (or “Bootloader”) button on the keyboard. There are several other ways it might be done, see this page.

Then, run this command to write the firmware to the keyboard, again replacing “<kb>” according to your keyboard model:

make <kb>:vial:flash

Troubleshooting: If building or flashing fail, the “qmk doctor” command may show suggestions to fix common problems.

Using Vial

To use Vial, you must first install Vial firmware on the keyboard.

Once Vial firmware is running on your keyboard, use the Vial configurator to edit the keymap and settings. There are two options:

Linux users: You must create a udev rules file to grant the configurator the necessary permissions to interface with your keyboard.

Assigning a key

Vial makes it easy to assign what a key does. In the top area of the configurator window, click the key you would like to change, then in the bottom area, select from the palette what to assign to it. The palette has multiple tabs for different kinds of keys.

Vial’s documentation is limited. Refer to QMK’s documentation, which is much more detailed, if you need further explanation of a key or feature.

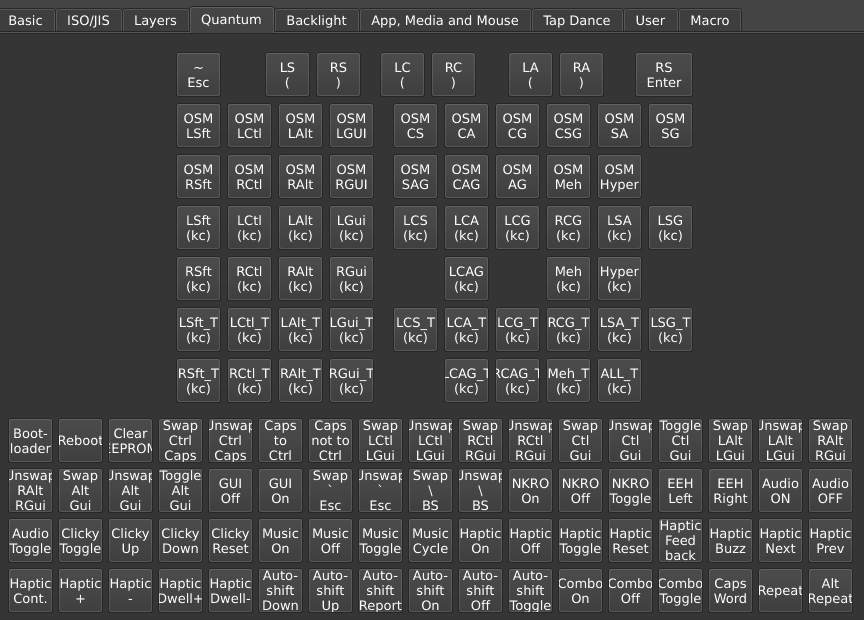

The Quantum tab hosts many advanced QMK features.

An incomplete inventory:

Some advanced keys, like LSft(kc), LSft_T(kc), and LT 1 (kc), are compounds taking a “kc” basic keycode as a parameter. To assign such keys, first select the advanced keycode. When placed, the key will show smaller placeholder area nested within it. Select this area, then pick a key from the Basic tab to complete the key. The “kc” must be a basic key; this is a QMK limitation.

Assigning LCtl_T(F) to a key.

Arbitrary or “Any” keycode entry

Vial’s Basic tab has a special Any key. This is a low-level escape hatch, useful to assign keys known to be supported in the firmware yet not otherwise accessible in the configurator. Assigning “Any” to a key opens a dialog box where you can entry an arbitrary keycode. Alternatively, double click a keymap key to open this dialog.

Textual entry

In the edit box, you can type the QMK name or C code syntax for the keycode, as how one would refer to the key in editing their layout in keymap.c (see the full list of keycodes).

Example: “MT(MOD_LCTL | MOD_LSFT, KC_GRV)” defines a mod-tap key that sends Ctrl + Shift when held and grave ` when tapped.

Numerical entry

If the key isn’t recognized by name, enter its 16-bit numerical keycode. The source file quantum/keycodes.h is a useful reference for the keycodes as numerical values. It’s a tedious process, but it does work to assign keys that would be otherwise unavailable. See a note on keycodes below for an in-depth example.

Again, for all of this to work, the firmware needs to be built to support the keycode being assigned. Otherwise, likely, the key will do nothing.

QMK Settings

The QMK Settings tab exposes many (though not all) of QMK’s settings for various features. Here too, Vial’s documentation is minimal, and users are referred to QMK’s documentation.

The QMK Settings tab includes select options from:

Configuring home row mods

See also Home row mods are hard to use.

A frequent question is what is an effective Vial configuration for home row mods. Here is my recommendation:

Suggested Vial tap-hold configuration
Suggested Vial tap-hold configuration.

Vial pre-0.7.4: Older versions of Vial use different naming and don’t expose Chordal Hold. Make sure Permissive Hold and Ignore Mod Tap Interrupt are both checked. Or better yet, reinstall Vial firmware to get the latest.

Why not Tap Dance? Mod-tap keys *_T use an elaborate set of rules to decide when the key is tapped vs. held, much of this designed with home row mods in mind. Tap Dances use a separate, simpler implementation to track when keys are tapped or held, which is poorly suited for home row mods.

Unicode input

QMK’s Unicode input feature enables you to type Unicode symbol, such as a non-English letter or emoji, by pressing a key. While Vial lacks direct support for this feature, it’s possible to hack it through macros. Arguably, QMK’s implementation is itself a hack.

Each major OS has an input method where the user may type a Unicode symbol by manually entering its code point number. Example: on Linux, the symbol 好 (U+597D) can be typed as “Ctrl+Shift+U, 5, 9, 7, D, space.” QMK literally sends such a key sequence to type each Unicode character. We can do the same in Vial with macros.

First, get the Unicode code point hex number for the symbol you want to produce. This should be a sequence of (usually) four digits or letters in A–F. There are many online references and tools that can help, like unicodelookup.com. I’ve collected a few in this appendix.

Linux users:

  1. Go to the Macros tab in the configurator and select a macro to configure (say, M0).

  2. Click the “Add action” button to add a key to the macro. In the dropdown that appears, select “Tap.” Then click the “+” button. A placeholder with a ▽ symbol appears.

    Editing the macro, just after clicking “+.”

  3. Click the ▽ placeholder and assign the initial key. For Linux this should be the Ctrl+Shift+U hotkey used to initiate Unicode input. To enter that in Vial, use LCA(kc) under the Quantum tab, followed by U from the Basic tab.

  4. Clicking “+” again to add more keys to the macro sequence. Define these keys to tap the hex digits of the code point to produce, then finally, the Space key.

    Completed macro for “好” (U+597D).

  5. Click the Save button in the bottom right.

  6. Finally, switch back to the keymap tab and assign the macro to a key.

For systems other than Linux, adjustments are needed since hotkeys differ, but the idea is the same.

Refer to Vial’s macros docs and QMK’s Unicode input feature for more details on each.

Customize your Vial build

You can extend a stock Vial build to tune feature entry limits, enable otherwise unexposed QMK features, and add third-party community modules. The workflow for this is generally:

  1. Set up your build environment.

  2. Implement your customizations by editing the config.h, rules.mk, keymap.c files in your vial keymap folder.

  3. Rebuild and flash the customized firmware to your keyboard:

    make <kb>:vial:flash

    Tip: Use the configurator to save your current Vial keymap to .vil file before flashing (File → Save current layout). Then after flashing, load the saved keymap to restore it. This spares you the chore of recreating your keymap.

  4. Test (and return to step 2 as needed).

Before changing any source files, I suggest checking that building firmware with command “qmk <kb>:vial” completes without errors (replacing the “<kb>” with the path for your keyboard model). This verifies that your keyboard model has been ported to Vial and that your environment can successfully build it.

Change max number of layers and feature limits

You can increase (or for recovering memory, decrease) the Vial’s max number of layers, number of combo entries, and other feature limits. This is done by editing the following definitions (or adding them if not already present) in the config.h file in your vial keymap folder:

#define DYNAMIC_KEYMAP_LAYER_COUNT 16   // # Layers.
#define DYNAMIC_KEYMAP_MACRO_COUNT 32   // # Macros.
#define VIAL_TAP_DANCE_ENTRIES 32       // # Tap Dances.
#define VIAL_COMBO_ENTRIES 32           // # Combos.
#define VIAL_KEY_OVERRIDE_ENTRIES 32    // # Key Overrides.
#define VIAL_ALT_REPEAT_KEY_ENTRIES 32  // # Alt Repeat entries.

Rebuild and flash the firmware to apply the updated limits to your keyboard.

The max possible layers supported is 32 (QMK’s limit). For per-feature entry limits, Vial’s default logic scales each as far as 32 entries, but you can set limits beyond that provide your MCU has the memory for it.

Custom keycodes and macros

Vial supports user-defined keycodes that appear in the configurator, under the User tab, allowing you to assign them in the keymap just like standard keys. See Vial’s Custom keycode documentation for details. As in mainline QMK, handle your custom keys in process_record_user() in keymap.c. See my QMK macros series for how to do that.

Additional QMK features

You can enable additional core QMK features in Vial as you would in mainline QMK, through the config.h and rules.mk files within your vial keymap folder. If these files don’t already exist, you can add them and they’ll be picked up automatically in the build.

📝  Note

While enabling additional QMK features is generally compatible, Vial offers no support to use them. They won’t support dynamic configuration. They won’t appear visually in the Vial configurator. Be prepared to use such features in the regular QMK way.

A couple examples:

Troubleshooting: If the build fails with a message like “firmware is too large!,” too many features are enabled to fit in flash memory. Sadly, you will need to be selective in which features to enable. These guides may help:

A note on keycodes

Some features define keys specific to using that feature. Unfortunately, Vial is unaware of features outside of what it explicitly supports and won’t show their keys in the configurator. How to assign such keys? The easiest solution to this is to edit keymap.c in the vial folder to use these keys somewhere in the keymap array—then, those keys will be assigned in the keymap by default after freshly flashing the firmware.

Example: For the ZSA Voyager, the keyboards/zsa/voyager/keymaps/vial/keymap.c defines the default keymap:

const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
    [0] = LAYOUT(
        KC_ESC,  KC_1,    KC_2,    KC_3,    KC_4,    KC_5,                         KC_6,    KC_7,    KC_8,    KC_9,    KC_0,    KC_MINS,
        CW_TOGG, KC_Q,    KC_W,    KC_E,    KC_R,    KC_T,                         KC_Y,    KC_U,    KC_I,    KC_O,    KC_P,    KC_BSLS,
        SFT_T(KC_BSPC),KC_A, KC_S, KC_D,    KC_F,    KC_G,                         KC_H,    KC_J,    KC_K,    KC_L,    KC_SCLN, RSFT_T(KC_QUOT),
        KC_LGUI, ALT_T(KC_Z),KC_X, KC_C,    KC_V,    KC_B,                         KC_N,    KC_M,    KC_COMMA,KC_DOT,  RALT_T(KC_SLSH), KC_RCTL,
                                LT(1,KC_ENT), CTL_T(KC_TAB),           SFT_T(KC_BSPC), LT(2,KC_SPC)
    ),
    // More layers...

Suppose I have enabled the Swap Hands feature, which Vial doesn’t natively support, by adding “SWAP_HANDS_ENABLE = yes” in vial/rules.mk. Swap Hands has several feature-specific keycodes, none of which Vial knows, including

Let’s put these in the upper-left corner of the base keymap (anywhere in the keymap would work). For the SH_T(kc) key, I’ll set the “kc” tapping key to KC_A:

[0] = LAYOUT(
    SH_MON, SH_OS, SH_T(KC_A), KC_3,    KC_4,    KC_5,
    // Other keys same as before ...

After rebuilding and flashing, the SH_MON, SH_OS, SH_T(KC_A) keys trigger the Swap Hands feature as expected. Yet here is how the keymap looks in the Vial configurator…

Vial configurator displaying Swap Hands keys in the top left corner.

Vial doesn’t know these keys, so it displays keycodes numerically as hexadecimal values:

📝  Note

The numerical values of the keycodes may differ between different versions of QMK. Verify keycode values for your version of the firmware.

Knowing these values, we can use “Any” keycode entry to assign them to other keys. To make another SH_MON key for instance, assign “Any” to a keymap key or double click it to open the “Assign arbitrary keycode” dialog box, then enter 0x56f2.

Alternative: go to the source

As noted earlier, another way we could deduced these numerical keycodes is by referring to the quantum/keycodes.h source file:

// ...
QK_SWAP_HANDS_TOGGLE = 0x56F0,
QK_SWAP_HANDS_TAP_TOGGLE = 0x56F1,
QK_SWAP_HANDS_MOMENTARY_ON = 0x56F2,
QK_SWAP_HANDS_MOMENTARY_OFF = 0x56F3,
QK_SWAP_HANDS_OFF = 0x56F4,
QK_SWAP_HANDS_ON = 0x56F5,
QK_SWAP_HANDS_ONE_SHOT = 0x56F6,
// ...

This method successfully reveals the same codes as above, 0x56f2 for SH_MON (aka QK_SWAP_HANDS_MOMENTARY_ON) and 0x56f6 for SH_OS (aka QK_SWAP_HANDS_ONE_SHOT).

But what about SH_T(KC_A)? Since SH_T(KC_A) is a compound key, determining its keycode is tricker. The “SH_T(kc)” part is defined as a preprocessor macro in quantum/quantum_keycodes.h:

#define SH_T(kc) (QK_SWAP_HANDS | ((kc)&0xFF))

in which QK_SWAP_HANDS = 0x5600. Other compound keycodes are defined this way in the same file. For the “kc” argument, we supplied KC_A, whose keycode is 0x0004. The complete keycode for SH_T(KC_A) is composed by their bitwise-or, 0x5604, just like we found previously.

QMK Community Modules

You can use third-party QMK community modules in Vial:

  1. Put the modules under vial-qmk/modules/ <author_name> / <module_name>.
  2. Within your vial keymap folder, create a keymap.json file (or if it exists, add to it) to define which modules to enable in the build.
  3. Follow the module’s documentation for any further setup instructions.
  4. Build and flash the firmware.

Example: Put Sentence Case under vial-qmk/modules/getreuer/sentence_case.

Then enable Sentence Case by writing a file keymap.json in your vial keymap folder with the content

{
  "modules": ["getreuer/sentence_case"]
}

Some modules define new keys. Again, Vial is unaware of modules, and the configurator won’t show their keys. As suggested above, the easiest way to assign these keys is to edit keymap.c and use them somewhere in the keymaps array.

How Vial works

Vial does a lot under the hood to enable dynamic configuration. Here is an overview.

Diagram showing how Vial stores keymaps and settings in RAM and EEPROM for dynamic editing. Diagram showing how Vial stores keymaps and settings in RAM and EEPROM for dynamic editing.

Memory

In mainline QMK, most settings are frozen at compile time. For memory efficiency, as much as possible is stored in flash memory (PROGMEM) and #ifdef’d to conditionally exclude unused functionality. This is essential to supporting low-end AVR chips.

In Vial on the other hand, the keymap and many settings are dynamic. To support on-the-fly edits, the active keymap and settings are stored in RAM. For persistence across reboots, they are also backed in EEPROM (or EEPROM emulated by flash memory). Vial additionally stores metadata about the keyboard in vial.json in the keyboard’s flash memory (in a compressed form) and transmits it upon connection, enabling the configurator to visualize the keymap and communicate properly. Consequently, Vial firmware tends to have a larger footprint. On keyboards running on AVR chips, the default Vial build may disable some features to fit within flash memory.

Communication

Vial relies on Raw HID communication to bridge the keyboard and the configurator. The keyboard firmware serializes your active settings into a byte stream and sends them to the configurator. When you make an edit, the updated settings are serialized and sent back. The firmware decodes the incoming Raw HID packets, applies the changes to RAM, and commits them to EEPROM for persistence.

Where are my configurations stored?

What Where is it configured Storage
Active keymap Configurator keymap tab RAM*
Active settings Configurator QMK Settings RAM*
Compile-time configuration vial/config.h Flash
Default keymap vial/keymap.c Flash
Supported features vial/rules.mk Flash
Keyboard metadata vial/vial.json Flash

∗ and backed in EEPROM

Developing Vial

Contributing to Vial generally involves coordinated pull requests across three repos:

An example past PR: Add Repeat Key and Alt Repeat Key to Vial
(fw: vial-qmk#906, gui: vial-gui#334, docs: vial-kb.github.io#64).

Vial maintainers prioritize minimizing merge conflicts. Because Vial closely tracks the mainline QMK repo, changes to the core code are kept to a minimum. If a feature would require changing QMK core code, get those changes merged into QMK first (see my notes on contributing to QMK). Then wait for Vial to pull those upstream changes.

Being dynamic

In Vial, options are (of course!) expected to be dynamic. This is typically achieved by designing QMK core features with a user callback function API, then in Vial, leveraging that callback to plumb the dynamic setting.

Example: In mainline QMK, the TAPPING_TERM for tap-hold keys is a compile-time constant. To make the tapping term dynamically configurable, Vial uses the get_tapping_term() callback to plumb the dynamic value of the tapping term.

Besides callbacks, QMK core defines certain functions as “__attribute__((weak))” weak symbols, including some that aren’t necessarily presented as user APIs. This enables Vial to override them with a redefinition for dynamic editing.

Example: In mainline QMK, function keycode_at_keymap_location() is weakly defined to perform look-up on the read-only keymaps array in PROGMEM. Vial overrides this to defer to a function performing look-up on a rewritable array in EEPROM memory instead.
